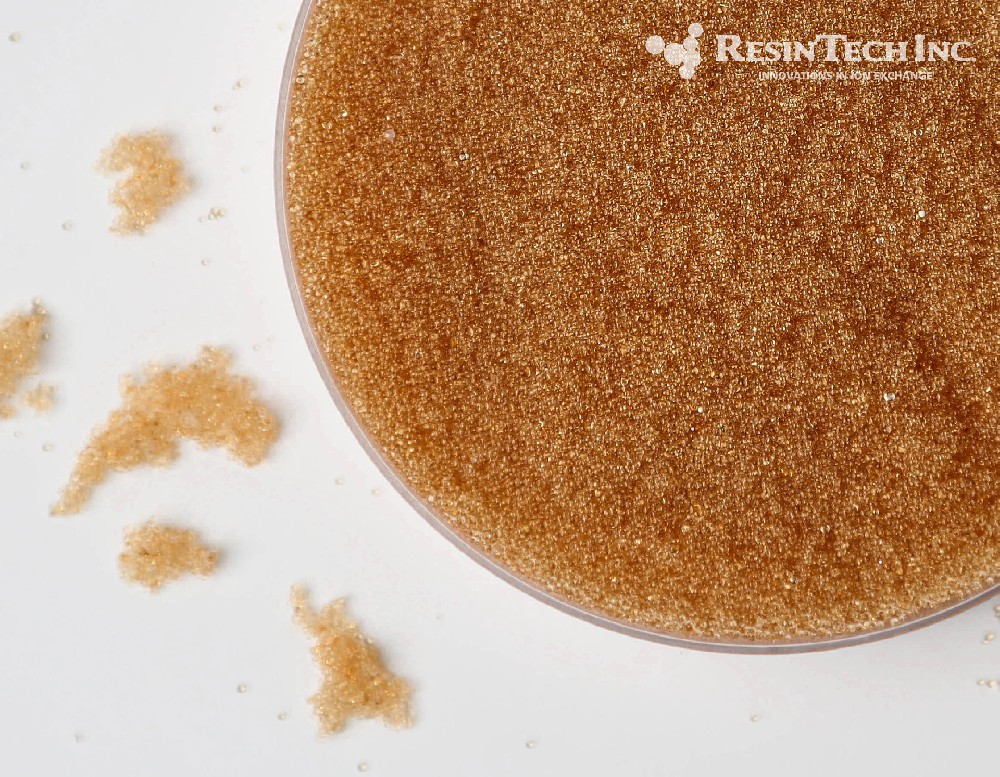

ResinTech CG10-H-UPS is an amber-colored uniform particle size hydrogen form 10% cross-linked gel strong acid cation resin. The uniform beads and somewhat smaller harmonic mean size yields minimal pressure loss and better regeneration efficiency compared to Gaussian-sized resins. It is intended for use in all industrial applications that require a hydrogen form cation resin and is recommended for countercurrently regenerated systems such as packed beds.
Demineralization
Packed Beds
Cation Component in Mixed Beds
| SKU | CG10-H-UPS |
| Uniform Particle Size | TRUE |
| Polymer Matrix | Styrenic Gel |
| Ionic Form | Hydrogen |
| Functional Group | Sulfonic Acid |
| Physical Form | Spherical Beads |
| Color | Amber |
| Particle Size | 20 to 40 US Mesh (400 - 841 μm) |
| Minimum Sphericity | 95% |
| Uniformity Coefficient | 1.25 |
| Reversable Swelling | H → Na -4% to -7% |
| Temperature Limit | 265°F (129°C) |
| Total Exchange Capacity (meq/mL) | 2. |
| Moisture Retention | 44% to 52% |
| Shipping Weight | 50 - 52 lbs/ft³ (801 - 833 g/L) |
| REACH Registered | YES |
| Kosher Certified | YES |
| Regenerability | TRUE |
